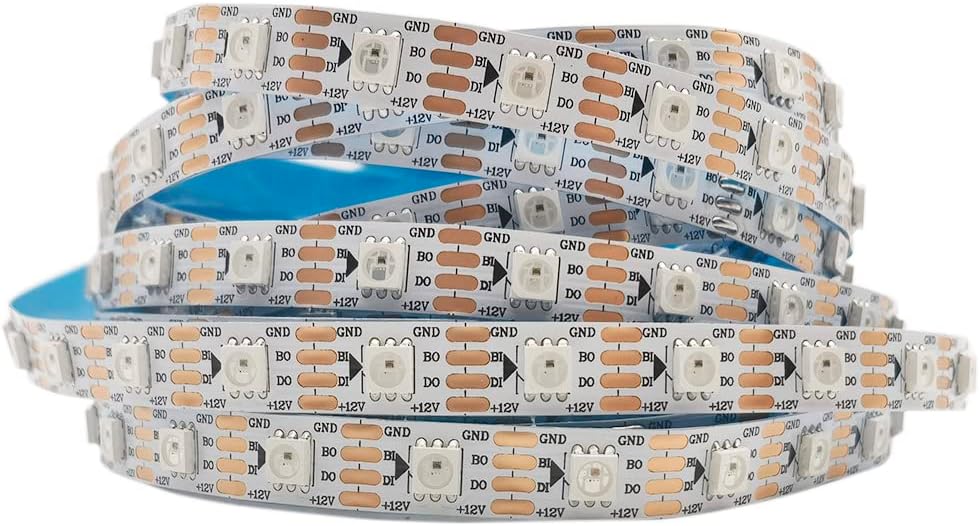

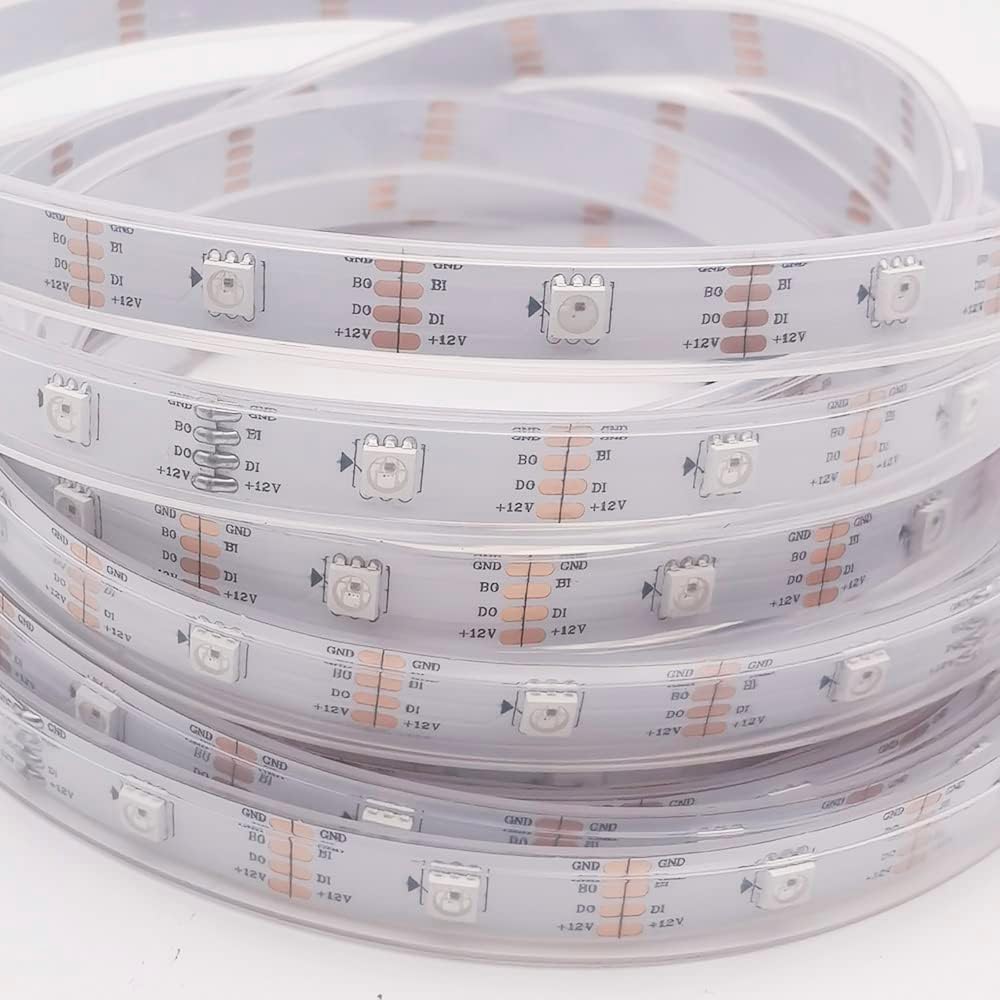

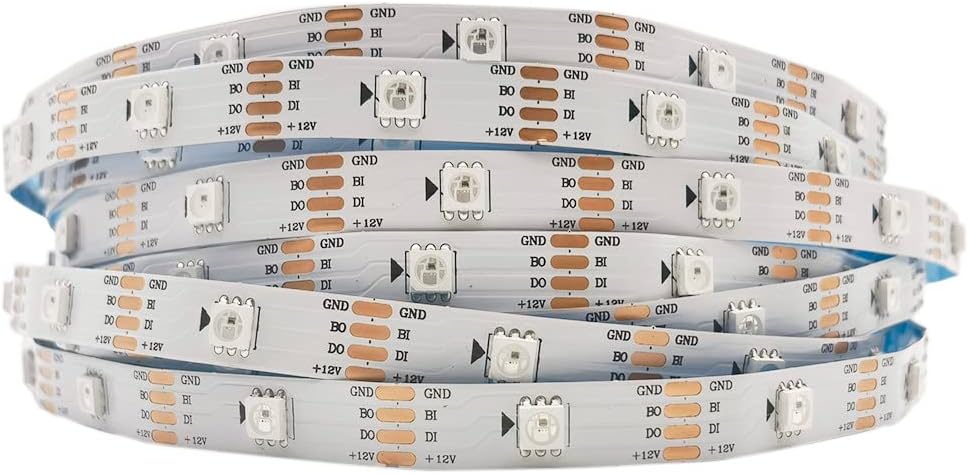

WS2815 RGB LED Strip Individually Addressable 30/60/144pixels/Leds/M SMD5050 TV Tape Light IP30/65/67 DC5V DC12V (5m 30LED IP67, White PCB)

Notes: (1) Price is for LED strip only, no power supply or LED controller! (2) LED strips must be used with power supply and controller! (3) There are solder joints every 0.5 meters, please pay attention! (4) WS2815, WS2813, WS2812, WS2811 are four different types of lamps, please pay attention when purchasing! (5) WS2812/WS2813 are 5V light bars. WS2815/WS2511 are 12V LED strips! (6) WS2811 / WS2812 use 3pin connector. WS2815/WS2813 use 4pin connector. Product parameters: (1)LED light source: WS2815 LEDs (2)same protocol as WS2813S with Dual-signal wires (3)Input voltage:DC12V; (4)Power:30leds/m----7watt/meter 60leds/m----12watt/meter 144leds/m----43.2watt/meter (5)LED resource:WS2815 led(5050 SMD RGB LED with built-in improved version of ws2811 ic) (6)LED:each LED is separately controlled (7)IC Type:improved version ws2815 IC(built inside the 5050 smd rgb led) (8) IC:1 IC drives 1 led chip (9)Pixels:30/60/144/meter; (10)Pitch:16.6mm(1000/64); (11)Grey scale:256 (12)Bits/color:8-bits/color; (13)FPC Width:30leds/m----10mm 60leds/m----10mm 144leds/m----12mm (14)FPC color:White PCB、blackPCB (15)Protection rate：IP30/ IP65 /IP67 (16)Colors: Full color RGB, dream color changing; (17)Cuttable:every LED is cuttable; (18)Connector：4PIN connector terminal pair

• Item is 4 wires with Dual-signal wires, work Voltage: DC 12V
• One pixel damaged will not affect the other LEDs working.
• The power protection,if +12V and GND reverse polarity,the LED will not be burned.
• Dual signal wires version, signal can jump to transfer.
• The original electronic devices integrated,it does not cause virtual welding in the installation process.
